Вот смотри

nova secgroup-list-rules default /usr/lib/python2.7/dist-packages/novaclient/client.py:278: UserWarning: The 'tenant_id' argument is deprecated in Ocata and its use may result in errors in future releases. As 'project_id' is provided, the 'tenant_id' argument will be ignored. warnings.warn(msg) WARNING: Command secgroup-list-rules is deprecated and will be removed after Nova 15.0.0 is released. Use python-neutronclient or openstackclient instead. +-------------+-----------+---------+----------+--------------+ | IP Protocol | From Port | To Port | IP Range | Source Group | +-------------+-----------+---------+----------+--------------+ | | | | | default | | | | | | default | +-------------+-----------+---------+----------+--------------+

+-------------+-----------+---------+-----------+--------------+ | IP Protocol | From Port | To Port | IP Range | Source Group | +-------------+-----------+---------+-----------+--------------+ | tcp | 22 | 22 | 0.0.0.0/0 | | | icmp | -1 | -1 | 0.0.0.0/0 | | +-------------+-----------+---------+-----------+--------------+

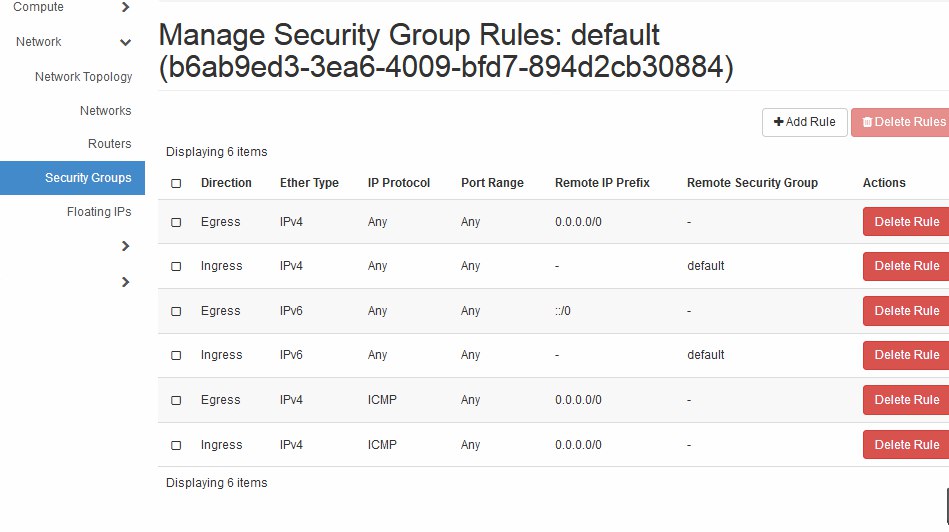

А вот правила для ICMP, у тебя их нет

блин

все же очевидно

какой я тупой

(((

подозревал что это сек группы

created_at='2017-04-05T09:14:29Z', direction='ingress', ethertype='IPv4', id='9db7b2fc-bb8e-4518-842a-d10e6b7ab5cd', protocol='icmp', remote_ip_prefix='0.0.0.0/0', | | | revision_number='1', updated_at='2017-04-05T09:14:29Z'

добавил

тоже самое

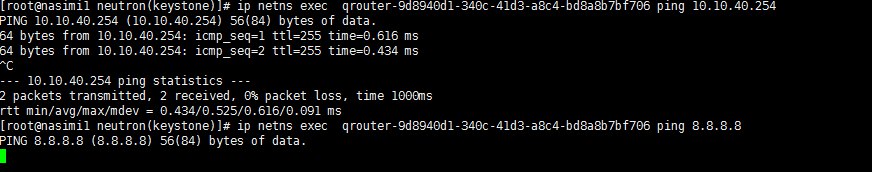

40.254 это циска

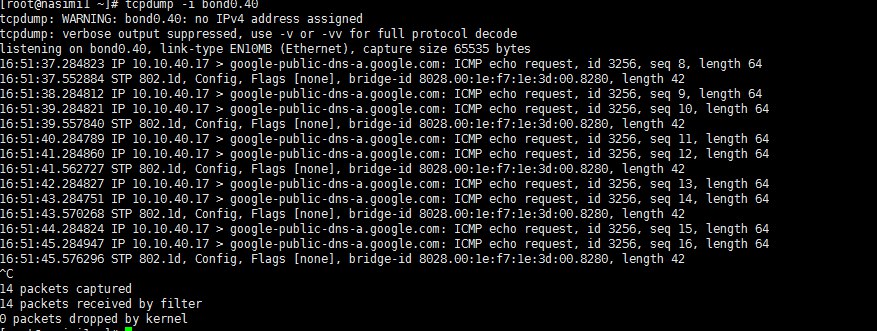

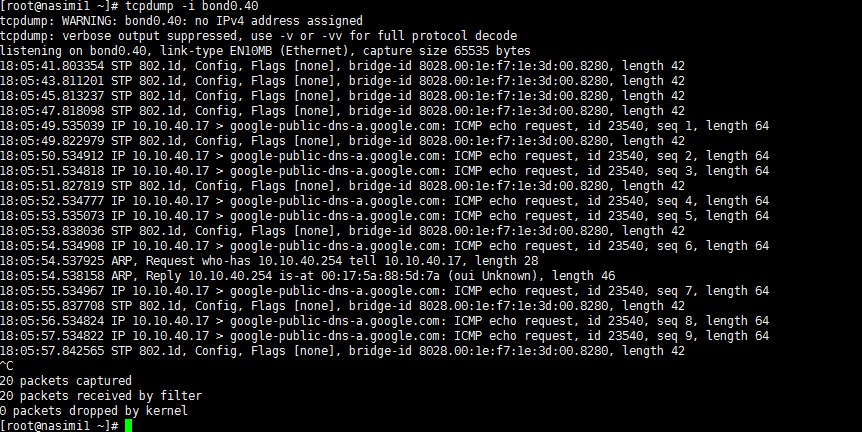

а вот tcpdump

а вот tcpdump

а что собственно вы хотите? Циска пингуется с vRouter, но дальше не пускает. При чем здесь Openstack?

далее, как я понимаю вы живете вообще без vRouter по схеме сети

я хотел бы чтоб инстансы выходили в инет через vrouter

в смысле трафик с vm идет на Циску.

а vrouter через циску

или моя задача не реальна ?

а vrouter через циску

тогда все не так. Надо создать virtual network с subnet, зааттачить на vRouter, далее все VM туда

neutron net-list

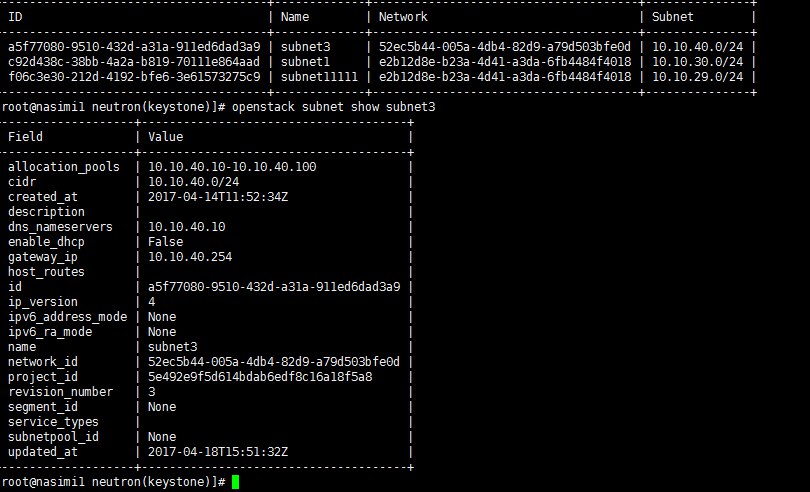

есть две сетки

# openstack network list +--------------------------------------+---------+----------------------------------------------------------------------------+ | ID | Name | Subnets | +--------------------------------------+---------+----------------------------------------------------------------------------+ | 52ec5b44-005a-4db4-82d9-a79d503bfe0d | ext_net | a5f77080-9510-432d-a31a-911ed6dad3a9 | | e2b12d8e-b23a-4d41-a3da-6fb4484f4018 | int_net | c92d438c-38bb-4a2a-b819-70111e864aad, f06c3e30-212d-4192-bfe6-3e61573275c9 | +--------------------------------------+---------+----------------------------------------------------------------------------+ [root@

тогда все не так. Надо создать virtual network с subnet, зааттачить на vRouter, далее все VM туда

я это сделал

ага, а почему на vRouter 1 интерфейс?

# openstack router show router02 +-------------------------+------------------------------------------------------------------------------------------------------------------+ | Field | Value | +-------------------------+------------------------------------------------------------------------------------------------------------------+ | admin_state_up | UP | | availability_zone_hints | | | availability_zones | nova | | created_at | 2017-04-21T22:20:31Z | | description | | | distributed | False | | external_gateway_info | {"network_id": "52ec5b44-005a-4db4-82d9-a79d503bfe0d", "enable_snat": true, "external_fixed_ips": [{"subnet_id": | | | "a5f77080-9510-432d-a31a-911ed6dad3a9", "ip_address": "10.10.40.17"}]} | | flavor_id | None | | ha | False | | id | 9d8940d1-340c-41d3-a8c4-bd8a8b7bf706 | | name | router02 | | project_id | 5e492e9f5d614bdab6edf8c16a18f5a8 | | revision_number | 7 | | routes | | | status | ACTIVE | | updated_at | 2017-04-22T13:41:47Z | +-------------------------+------------------------------------------------------------------------------------------------------------------+ [root@

где вы увидели 1 интерфейс ?

neutron router-port-list

блин

я чтото напартачил (((

# neutron router-port-list neutron CLI is deprecated and will be removed in the future. Use openstack CLI instead. usage: neutron router-port-list [-h] [-f {csv,json,table,value,yaml}] [-c COLUMN] [--max-width <integer>] [--print-empty] [--noindent] [--quote {all,minimal,none,nonnumeric}] [--request-format {json}] [-D] [-F FIELD] [-P SIZE] [--sort-key FIELD] [--sort-dir {asc,desc}] ROUTER neutron router-port-list: error: too few arguments Try 'neutron help router-port-list' for more information. [root@

openstack router-port-list openstack: 'router-port-list' is not an openstack command. See 'openstack --help'. Did you mean one of these? orchestration build info orchestration resource type list orchestration resource type show orchestration service list orchestration template function list orchestration template validate orchestration template version list [root@

# openstack router port list openstack: 'router port list' is not an openstack command. See 'openstack --help'. Did you mean one of these? router add port router add subnet router create router delete router list router remove port router remove subnet router set router show router unset consumer create consumer delete consumer list consumer set consumer show software config create software config delete software config list software config show software deployment create software deployment delete software deployment list software deployment metadata show software deployment output show software deployment show [root@

есть только удаление порта и добавление

все верно, neutron router-port-list 9d8940d1-340c-41d3-a8c4-bd8a8b7bf706

нашел

# openstack port list +--------------------------------------+------+-------------------+----------------------------------------------------+--------+ | ID | Name | MAC Address | Fixed IP Addresses | Status | +--------------------------------------+------+-------------------+----------------------------------------------------+--------+ | 0ce89105-408e-4920-a82a-6d228d36deb9 | | fa:16:3e:87:ee:ce | ip_address='10.10.30.6', subnet_id='c92d438c-38bb- | ACTIVE | | | | | 4a2a-b819-70111e864aad' | | | 172815ee-c0ab-4a63-8c9d-82d3c38e83c5 | | fa:16:3e:a3:79:04 | ip_address='10.10.30.2', subnet_id='c92d438c-38bb- | ACTIVE | | | | | 4a2a-b819-70111e864aad' | | | 182ae99b-7c12-41d6-a8e1-ae06c51e4f9f | | fa:16:3e:0f:bb:b2 | ip_address='10.10.40.17', subnet_id='a5f77080-9510 | ACTIVE | | | | | -432d-a31a-911ed6dad3a9' | | | 20f84f2c-ced7-4284-ae24-0b5c399c4009 | | fa:16:3e:b0:09:9c | ip_address='10.10.29.1', | ACTIVE | | | | | subnet_id='f06c3e30-212d-4192-bfe6-3e61573275c9' | | | 30a109e8-23ef-49d9-bf18-2585cfba01b1 | | fa:16:3e:01:15:c5 | ip_address='10.10.40.208', | ACTIVE | | | | | subnet_id='a5f77080-9510-432d-a31a-911ed6dad3a9' | | | 343681a1-18fc-467d-bc87-6fa1fba8280c | | fa:16:3e:a2:ff:24 | ip_address='10.10.40.201', | N/A | | | | | subnet_id='a5f77080-9510-432d-a31a-911ed6dad3a9' | | | 3b8d36d2-ab36-412a-bb2b-45c0399b2f37 | | fa:16:3e:1d:0c:d7 | ip_address='10.10.30.3', subnet_id='c92d438c-38bb- | ACTIVE | | | | | 4a2a-b819-70111e864aad' | | | 9571847e-3ffc-4732-ac43-ba80134f71dc | | fa:16:3e:ce:87:36 | ip_address='10.10.30.5', subnet_id='c92d438c-38bb- | ACTIVE | | | | | 4a2a-b819-70111e864aad' | | | efb3086d-55ff-492a-a781-6aaabe655607 | | fa:16:3e:26:d9:04 | ip_address='10.10.30.1', subnet_id='c92d438c-38bb- | ACTIVE | | | | | 4a2a-b819-70111e864aad' | | +--------------------------------------+------+-------------------+----------------------------------------------------+--------+ [root@n

# neutron router-port-list 9d8940d1-340c-41d3-a8c4-bd8a8b7bf706 neutron CLI is deprecated and will be removed in the future. Use openstack CLI instead. +--------------------------------------+------+-----------+-------------------+--------------------------------------------------+ | id | name | tenant_id | mac_address | fixed_ips | +--------------------------------------+------+-----------+-------------------+--------------------------------------------------+ | 182ae99b-7c12-41d6-a8e1-ae06c51e4f9f | | | fa:16:3e:0f:bb:b2 | {"subnet_id": "a5f77080-9510-432d-a31a- | | | | | | 911ed6dad3a9", "ip_address": "10.10.40.17"} | +--------------------------------------+------+-----------+-------------------+--------------------------------------------------+ [root@n

нуу, а где 2-й интерфейс, тот что внутренний?

далее, не совсем понятно зачем 2 роутера делать на 1 сеть, кто из них будет дефолт?

это я игрался

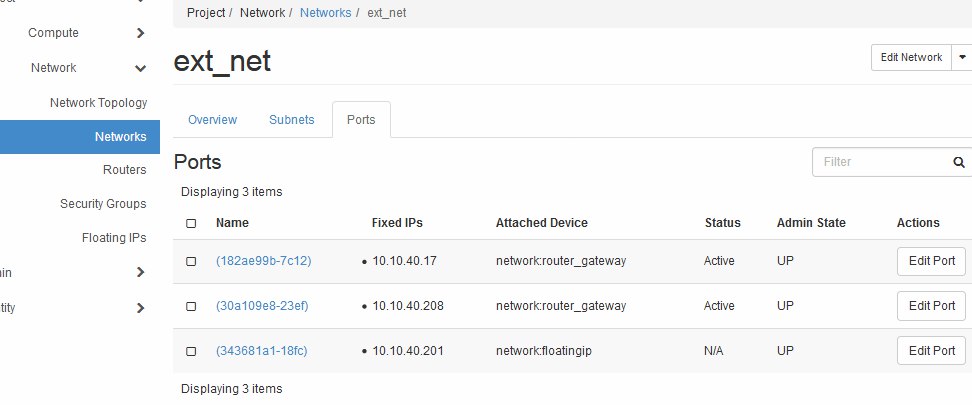

щас удалю 17

оставлю только 208

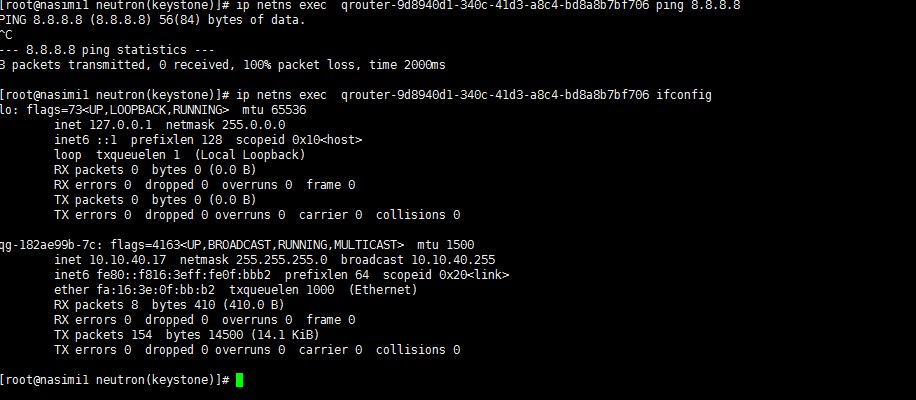

как только vm запингует 10.10.40.254, мяч не на нашей стороне ;)

10.10.29.1 тоже в топку

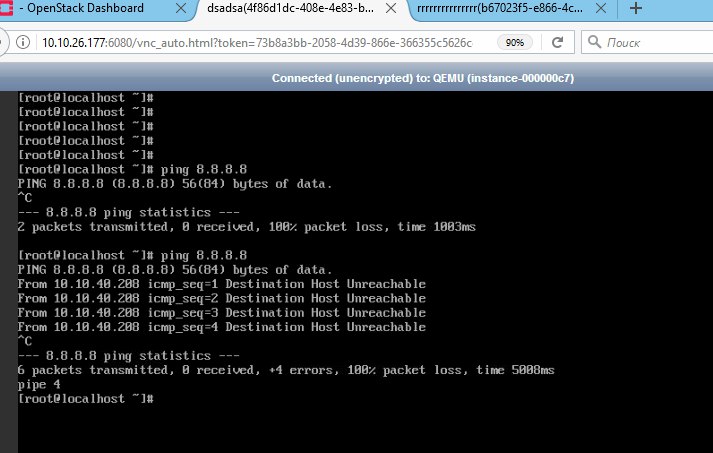

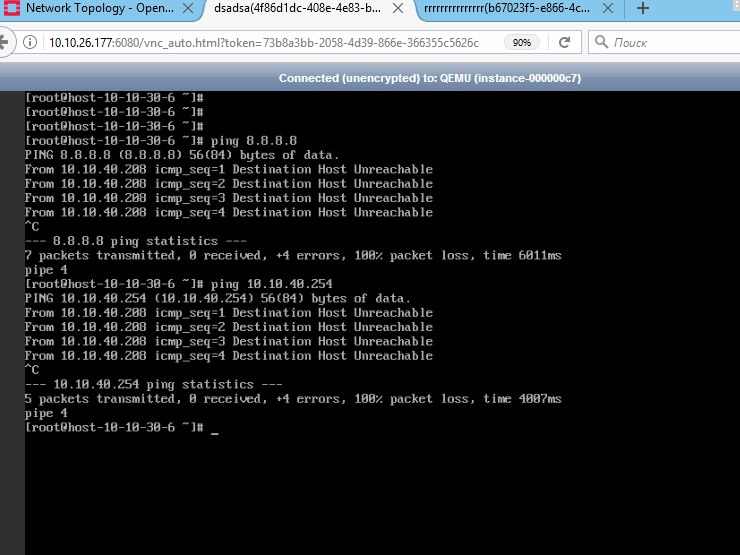

вм не пингует 254

(((

а 208?

а ну да

блин глюк какой то

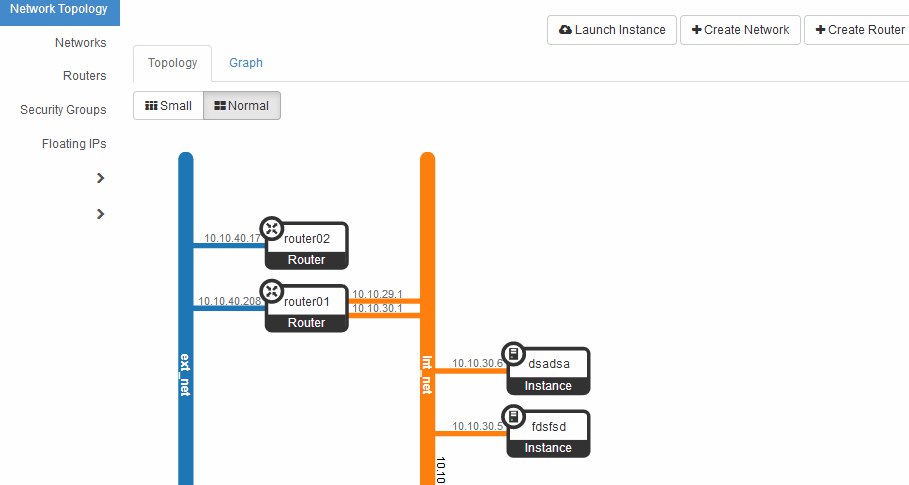

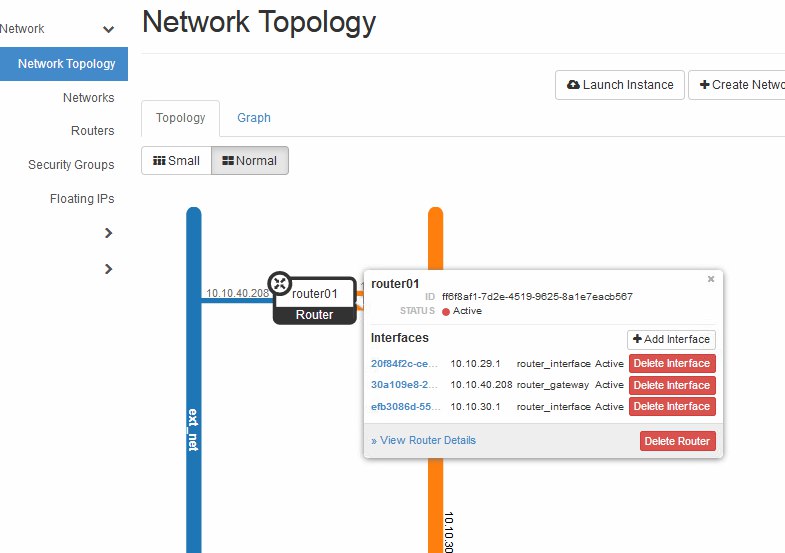

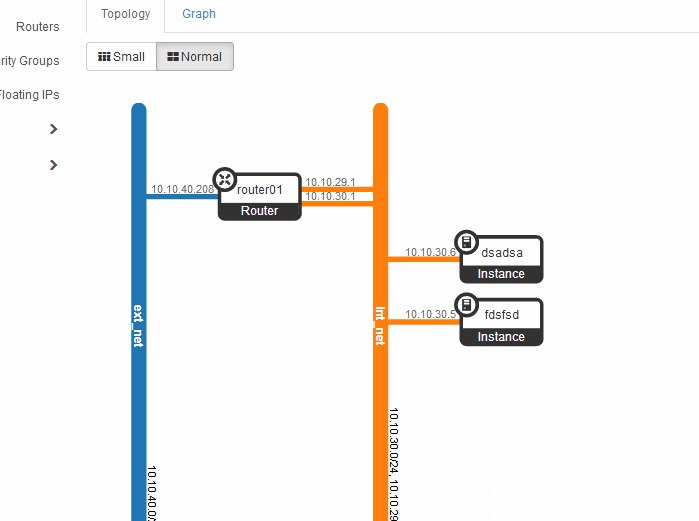

на карте показывает вроутер

а в ip net нет

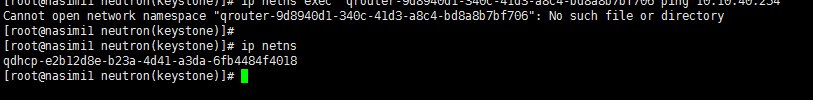

ip netns list

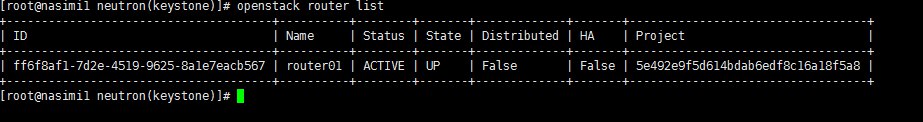

это после того как удалил

[root@nasimi1 neutron(keystone)]# ip netns list qdhcp-e2b12d8e-b23a-4d41-a3da-6fb4484f4018 [root@nasimi1 neutron(keystone)]#

это глюк горизона ?

не, neutron router-port-list <id>

# neutron router-port-list ff6f8af1-7d2e-4519-9625-8a1e7eacb567 neutron CLI is deprecated and will be removed in the future. Use openstack CLI instead. +-------------------------------------+------+----------------------------------+-------------------+-------------------------------------+ | id | name | tenant_id | mac_address | fixed_ips | +-------------------------------------+------+----------------------------------+-------------------+-------------------------------------+ | 20f84f2c- | | 5e492e9f5d614bdab6edf8c16a18f5a8 | fa:16:3e:b0:09:9c | {"subnet_id": "f06c3e30-212d-4192-b | | ced7-4284-ae24-0b5c399c4009 | | | | fe6-3e61573275c9", "ip_address": | | | | | | "10.10.29.1"} | | 30a109e8-23ef- | | | fa:16:3e:01:15:c5 | {"subnet_id": "a5f77080-9510-432d- | | 49d9-bf18-2585cfba01b1 | | | | a31a-911ed6dad3a9", "ip_address": | | | | | | "10.10.40.208"} | | efb3086d-55ff- | | 5e492e9f5d614bdab6edf8c16a18f5a8 | fa:16:3e:26:d9:04 | {"subnet_id": "c92d438c-38bb- | | 492a-a781-6aaabe655607 | | | | 4a2a-b819-70111e864aad", | | | | | | "ip_address": "10.10.30.1"} | +-------------------------------------+------+----------------------------------+-------------------+-------------------------------------+ [root@

значит не горизонт, ребутни l3 агента

щас

тоже самое

# ip netns list qdhcp-e2b12d8e-b23a-4d41-a3da-6fb4484f4018 [root@
